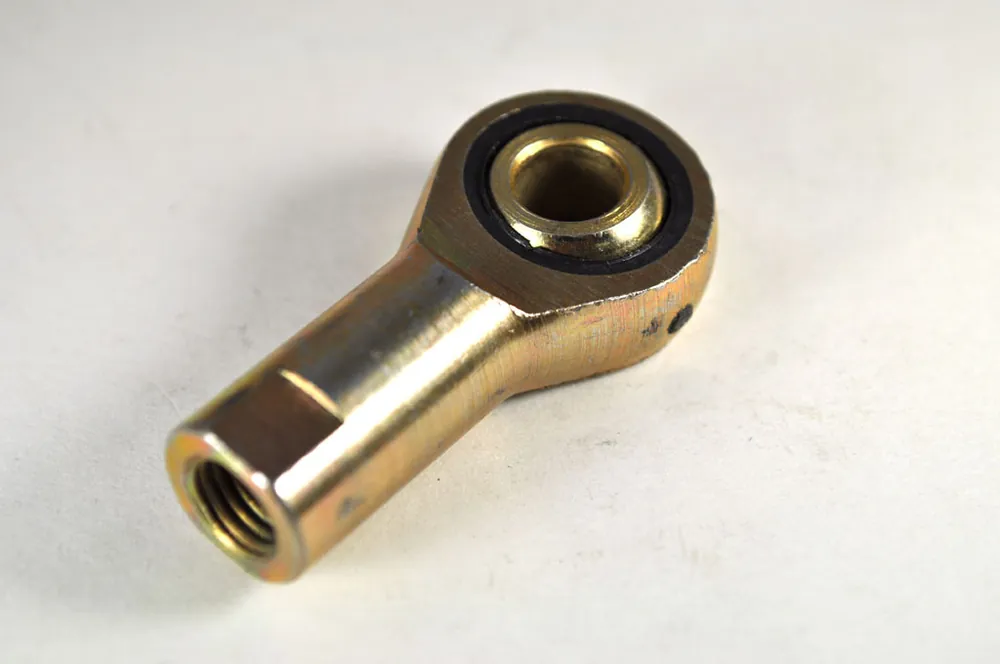

The Tuthill Rod End Female Molded Race with part number SPF5 is a rod end that features a 5/16-24 thread size and .750 thread length. This right hand female rod end comes in low carbon steel, zinc plated yellow and dichromate treated body. It also has a self lubricating, reinforced nylon and molded race.
Product Specifications:

• Part No.: SPF5
• Description: Rod End, Right Hand, Female
• Detail: Molded Race, Self Lubricating
• Ball Bore: .3125
• Ball Width: .437
• Housing Width: .344
• Centerline Length: 1.375
• Head Diameter: .875
• Shank Diameter: .500
• Wrench Flat Width: .437
• Wrench Flat Length: .281
• Ball Diameter: .625
• Thread Length: .750
• Thread Size: 5/16-24
• Ultimate Radial Static Load Capacity (Pounds): 2740
• Weight (Pounds): .077

MATERIALS:

• Ball: Low Carbon Steel, Case Hardened, Zinc Plated, Yellow, Dichromate Treated
• Body: Low Carbon Steel, Zinc Plated, Yellow, Dichromate Treated
• Race: Molded, Self Lubricating, Reinforced Nylon

Product Condition: NEW
Tuthill Rod End Female Molded Race SPF5
