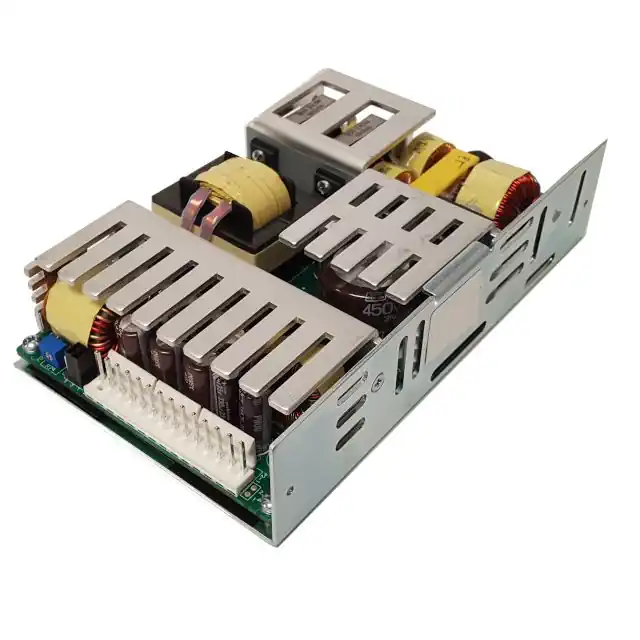

Integrated Power Designs DC4-150-1002-CH Features

• TARIFF FREE- IPD power supplies are proudly Made in the U.S.A.
• Includes a chassis as called out by the -CH suffix in the part number
• DC-DC, Medical and Industrial (ITE) safeties, enclosed type power supply
• Single Output: 3.3 volts, 30 amps, 99 watts
• Compact 3.8″ x 5″ x 1.3″ Size
• 2 Year Warranty
View More
36-72VDC Input
4242VDC Reinforced Insulation
Under/Overvoltage Lockout
Size/Pin Compatible with REL-150 Series
IEC 60601-1 3rd ed. Medical Cert.
IEC 62368-1 2nd ed. Certification
0-70°C Operating Temperature
RoHS Compliant
Optional Cover
Power Good Signal

For specific information on the IPD DC4-150-1002-CH please view the datasheet

Other single output models in the DC4-150 series: 2.5 volt-DC4-150-1001-CH, 5 volt-DC4-150-1003-CH, 12 volt-DC4-150-1004-CH, 15 volt-DC4-150-1005-CH, 24 volt-DC4-150-1006-CH, 28 volt-DC4-150-1007-CH, 48 volt-DC4-150-1008-CH, 20 volt-DC4-150-1009-CH
