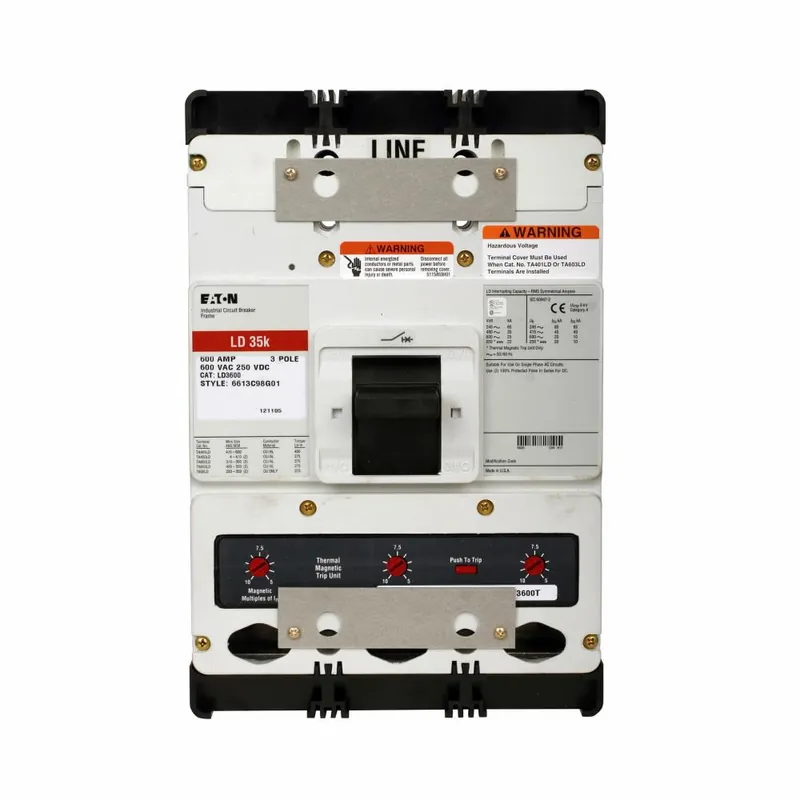

Product Specifications – LD3500W – Eaton Molded Case Circuit Breakers
-
Part Number:
LD3500W -
Manufacturer:
Eaton Cutler-Hammer -
Family:
Series C -
Pole:
3 -
Amp
500 -
Volt:
600 -
Phase:
3
-
Category:
Molded Case / 3-Pole -
Connection:
Feed-Thru -
Type:
LD -
Functions:
LI – Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V -
Frame Type:
L Frame
Dimensions
-
Dimensions (HxWxD):
10.75″ x 8.25″ x 4.06″ -
Weight:
16 lbs
Standards
Product Description – LD3500W – Eaton Molded Case Circuit Breakers
Cutler Hammer / Eaton / Westinghouse, Series C, type LD, 3P, 3PH, 500A, 600V, 35kA@480V, standard interrupting capacity, 40 degree C, feed-thru, complete with interchangeable LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers
