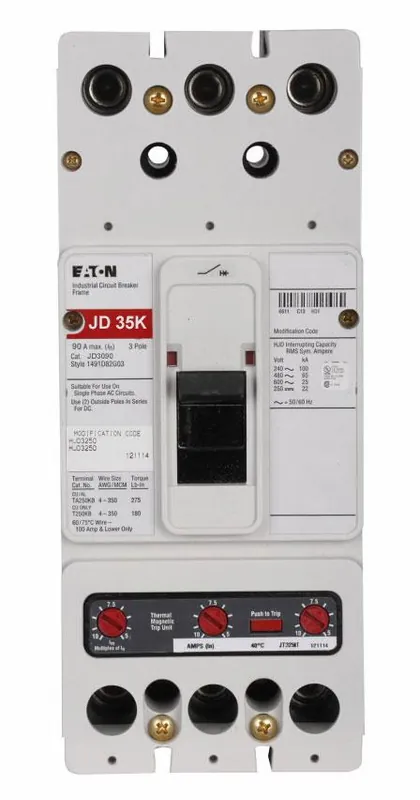

Product Specifications – JD3090C – Eaton Molded Case Circuit Breakers
-
Part Number:
JD3090C -
Manufacturer:
Eaton Cutler-Hammer -
Family:
Series C -
Pole:
3 -
Amp
90 -
Volt:
600 -
Phase:
3
-
Category:
Molded Case / 3-Pole -
Connection:
Bolt-On -
Type:
JD -
Functions:
LI – Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V -
Frame Type:
J Frame
Dimensions
-
Dimensions (HxWxD):
10″ x 4.13″ x 4.06″
-
Weight:
8 lbs
Standards
Product Description – JD3090C – Eaton Molded Case Circuit Breakers
Eaton Series C complete molded case circuit breaker, J-frame, JD, Complete breaker, Fixed thermal, Fixed magnetic trip type, Three-pole, 90 A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 50/60 Hz.
