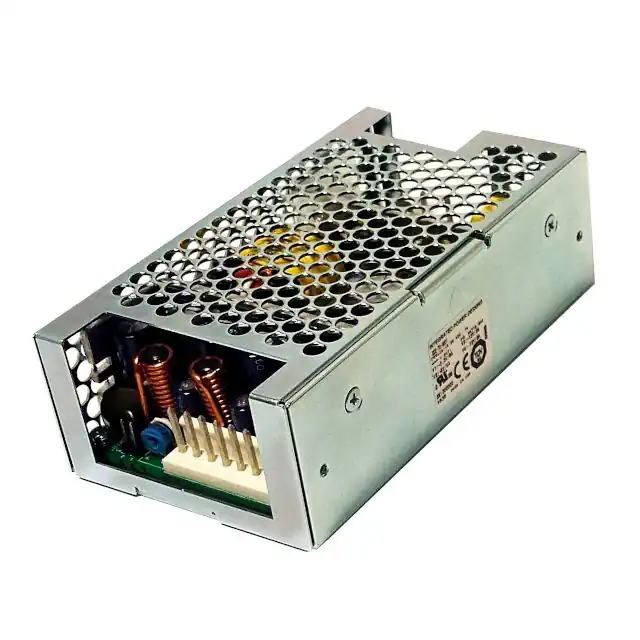

Integrated Power Designs DC4-70-4002-CHCO Features

• TARIFF FREE- IPD power supplies are proudly Made in the U.S.A.
• Includes a chassis and cover as called out by the -CHCO suffix in the part number
• DC-DC, Medical and Industrial (ITE) safeties, enclosed type power supply
• Quad Output: 5 volts / 6 amps, 3.3 volts / 5 amps, 12 volts / 2 amps, -12 volts / 2 amps, 70 total watts
• Compact 2.5″ x 4.5″ x 1.2″ Size
• 2 Year Warranty
View More
36-72VDC Input
4242VDC Reinforced Insulation
Under/Overvoltage Lockout
Size/Pin Compatible with REL-70 Series
IEC 60601-1 3rd ed. Medical Cert.
IEC 62368-1 2nd ed. Certification
0-70°C Operating Temperature
RoHS Compliant
Power Good Signal

For specific information on the IPD DC4-70-4002-CHCO please view the datasheet

Other quad output models in the DC4-70 series: 3.3V/5V/12V/-12V-DC4-70-4001-CHCO, 5V/3.3V/15V/-15V-DC4-70-4003-CHCO, 5V/-5V/12V/-12V-DC4-70-4004-CHCO, 5V/-5V/15V/-15V-DC4-70-4005-CHCO, 5V/24V/12V/-12V-DC4-70-4006-CHCO, 5V/24V/15V/-15V-DC4-70-4007-CHCO
