Description
Overview

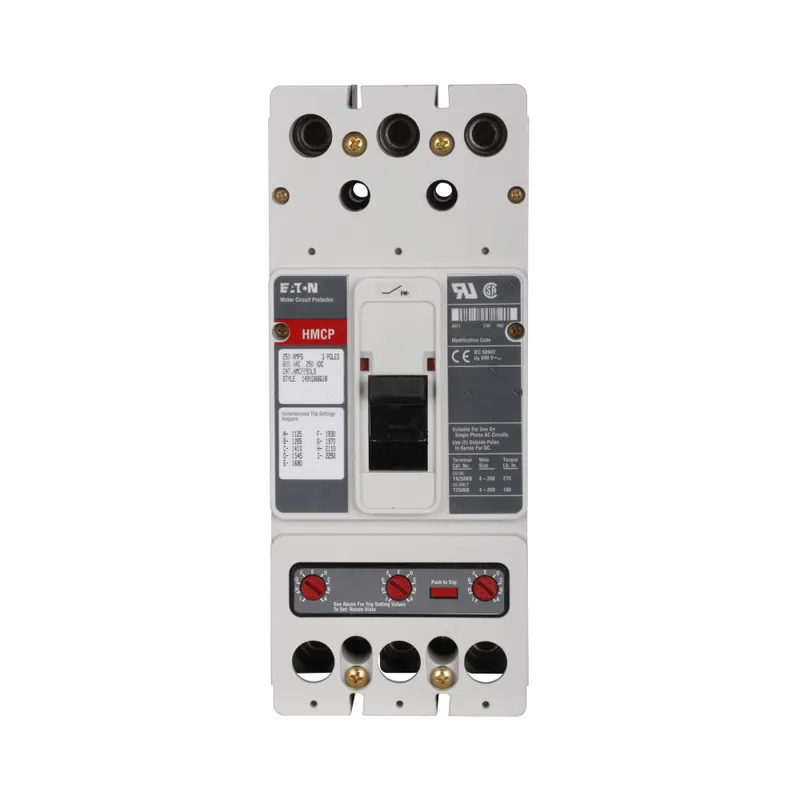

Product Specifications – HMCP250D5X – Eaton Molded Case Circuit Breaker
-
Part Number:
HMCP250D5X -
Manufacturer:
Eaton Cutler-Hammer -
Family:
Series C -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
Molded Case / 3-Pole -
Connection:
Feed Thru -
Type:
HMCP -
Functions:
I – Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
35kA@480V -
Frame Type:
J Frame
Dimensions
-
Dimensions (HxWxD):
10″ x 4.13″ x 4.06″
-
Weight:
12.5 lbs
Standards
Product Description – HMCP250D5X – Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type HMCP, J Frame, 3P, 3PH, 250A, 600V, 35kA@480V, feed-thru, complete with I – Instantaneous Protection Only and non-aluminum line & load side lug terminals, magnetic range 500-1000A, magnetic only, molded case circuit breakers.
