Description
Overview

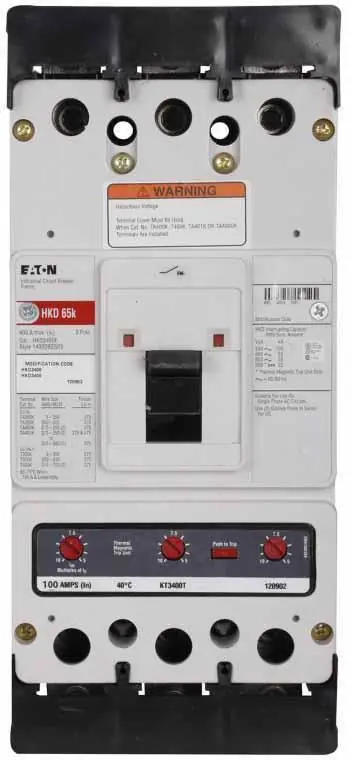

Product Specifications – HKD3100C – Eaton Molded Case Circuit Breakers
-
Part Number:
HKD3100C -
Manufacturer:
Eaton Cutler-Hammer -
Family:
Series C -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
Molded Case / 3-Pole -
Connection:
Feed-Thru -
Type:
HKD -
Functions:
LI – Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V -
Frame Type:
K Frame
Dimensions
-
Dimensions (HxWxD):
10.13″ x 5.5″ x 4.31″
-
Weight:
11.5 lbs
Standards
Product Description – HKD3100C – Eaton Molded Case Circuit Breakers
Eaton Series C complete molded case circuit breaker, K-frame, HKD, Complete breaker, Fixed thermal, Fixed magnetic trip type, OPTIM trip unit, Three-pole, 100 A, 600 Vac, 250 Vdc, 100kA@240 Vac, 65kA@480 Vac, Line and load.
Documentation
Catalogue
Technical Specifications
Installation Instructions
Data Sheet
