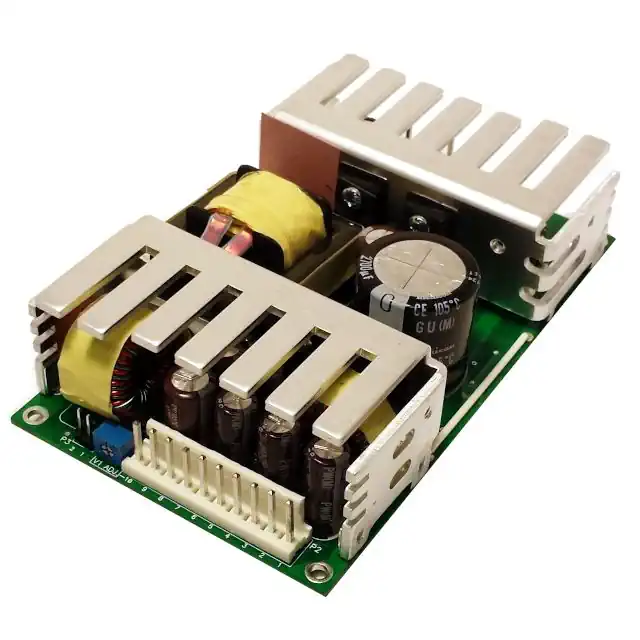

Integrated Power Designs DC4-110-4003 Features

• TARIFF FREE- IPD power supplies are proudly Made in the U.S.A.
• DC-DC, Medical and Industrial (ITE) safeties, open frame type power supply
• Quad Output: 5 volts / 10 amps, 3.3 volts / 6 amps, 15 volts / 2 amps, -15 volts / 2 amps, 110 total watts
• Compact 3” x 5” x 1.3” Size
• 2 Year Warranty
View More
36-72VDC Input
4242VDC Reinforced Insulation
Under/Overvoltage Lockout
Size/Pin Compatible with REL-110 Series
IEC 60601-1 3rd ed. Medical Cert.
IEC 62368-1 2nd ed. Certification
0-70°C Operating Temperature
RoHS Compliant
Optional Chassis/Cover
Power Good Signal

For specific information on the IPD DC4-110-4003 please view the datasheet

Other quad output models in the DC4-110 series: 3.3V/5V/12V/-12V-DC4-110-4001, 5V/3.3V/12V/-12V-DC4-110-4002, 5V/-5V/12V/-12V-DC4-110-4004, 5V/-5V/15V/-15V-DC4-110-4005, 5V/24V/12V/-12V-DC4-110-4006, 5V/24V/15V/-15V-DC4-110-4007
