Description
Overview

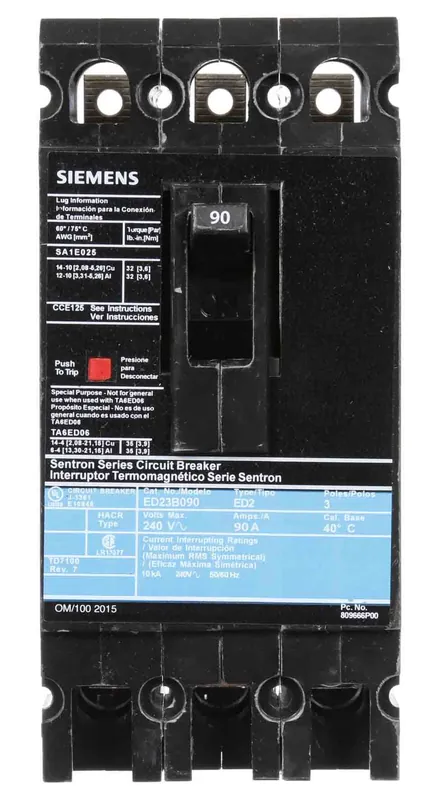

Product Specifications – ED23B090L – Siemens Breakers Molded Case Circuit Breakers
-
Part Number:
ED23B090L -
Manufacturer:
Siemens Breakers -
Family:
Sentron Series -
Pole:
3 -
Amp
90 -
Volt:
240 -
Phase:
3
-
Category:
Molded Case / 3-Pole -
Connection:
Feed-Thru -
Type:
ED -
Functions:
LI – Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V
Dimensions
-
Dimensions (HxWxD):
6.35″ x 3″ x 3.92″
-
Weight:
3.5 lbs
Standards
Product Description – ED23B090L – Siemens Breakers Molded Case Circuit Breakers
Siemens, Sentron Series, type ED, 3P, 3PH, 90A, 240V, 10kA@240V, standard interrupting capacity, 40 degree C, feed-thru, complete with LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
Documentation
Catalogue
Installation Instructions
Data Sheet
