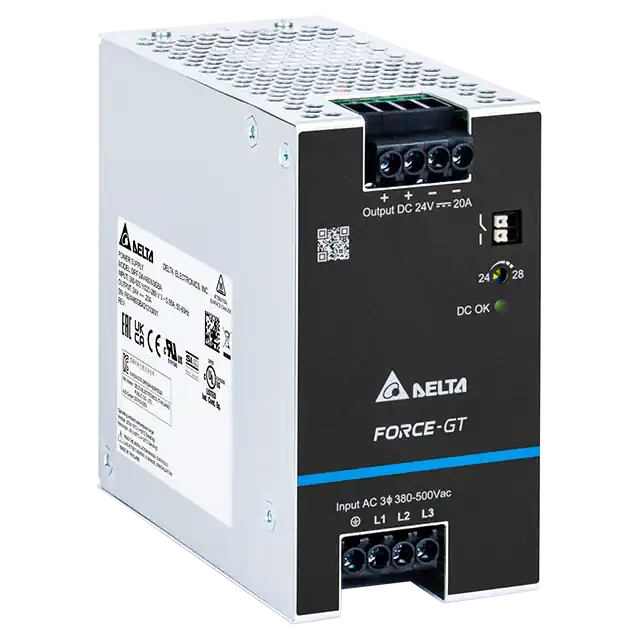

Delta DRF-24V480W3GBA Features

• AC-DC Industrial DIN Rail 1 output power supply
• Output: 24 volts, 20 amps, 480 watts
• Connection Type: Screw Terminal
• Conformal coating on PCBAs to protect against common dust and pollutants
• 3-Phase Input: 320~575Vac or 2-Phase Input: 340~575Vac (see datasheet for derating)
View More
Built-in constant current circuit for charging applications
Full load operating temperature up to 60°C
Cold start at -40°C
Ultra-Slim design
Long life electrolytic capacitor
Built-in DC OK relay and LED indicator
Compliant with 80 PLUS Gold for 115 V Industrial

DRF-480W (3-Phase) Series Description: The Delta DRF-480W (3-Phase) Series AC-DC DIN rail power supply, a premium offering within the Force-GT family, delivers a formidable 480-watt output with voltage options of 24V and 48V, fortified with a conformal coating to endure dust, pollutants, and corrosive elements in extreme industrial environments. Engineered for 3-phase (320-575Vac) or 2-phase (340-575Vac) AC input systems (refer to datasheet for derating), this unit is tailored for high-power applications such as utility-scale energy storage systems, advanced manufacturing lines, and large telecommunications hubs. Its superior power density and efficiency, coupled with a fanless, convection-cooled design, ensure steadfast performance from -30°C to +70°C, with full power sustained up to +50°C at rated input. The constant current mode with overcurrent protection optimizes it for charging applications, effortlessly supporting high-capacity battery banks and capacitive loads in systems like industrial robotics. Certified to IEC/EN/UL 62368-1 safety standards and RoHS-compliant, the DRF-480W (3-Phase) adheres to stringent global environmental and regulatory standards. It also meets EN 61000-6-4 Class B emission and EN 61000-6-2 immunity standards, minimizing electromagnetic interference in intricate industrial settings. Compact, DIN rail-mountable, and designed for enduring reliability, this power supply is the go-to solution for engineers requiring a high-capacity, 3-phase-compatible power source for critical industrial operations.

For specific information on the Delta DRF-24V480W3GBA please view the datasheet

Other models in the DRF-480W (3-Phase) series: 48 volt-DRF-48V480W3GBA
