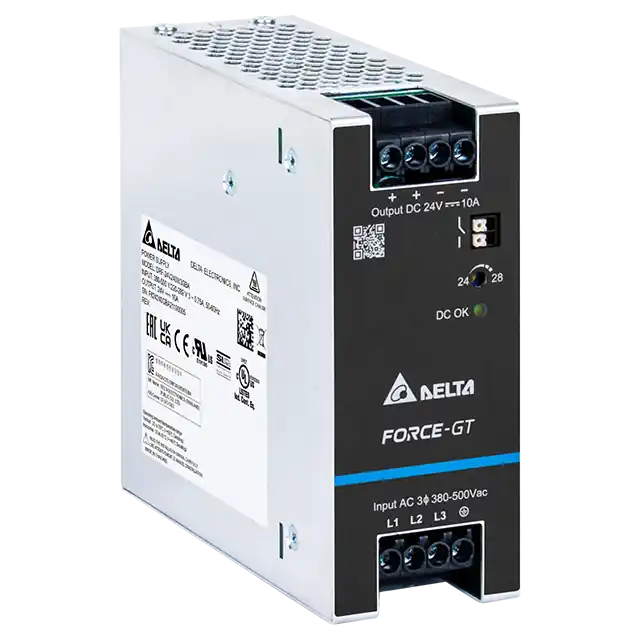

Delta DRF-24V240W3GBA Features

• AC-DC Industrial DIN Rail 1 output power supply
• Output: 24 volts, 10 amps, 240 watts
• Connection Type: Screw Terminal
• Conformal coating on PCBAs to protect against common dust and pollutants
• 3-Phase Input: 320~575Vac or 2-Phase Input: 340~575Vac (see datasheet for derating)
View More
Built-in constant current circuit for charging applications
Full load operating temperature up to 60°C
Cold start at -40°C
Ultra-Slim design
Long life electrolytic capacitor
Built-in DC OK relay and LED indicator
Compliant with 80 PLUS Gold for 115 V Industrial

DRF-240W (3-Phase) Series Description: The Delta DRF-240W (3-Phase) Series AC-DC DIN rail power supply, a high-performance model within the Force-GT family, delivers a robust 240-watt output at 24V, equipped with a conformal coating to withstand dust, pollutants, and corrosive elements in harsh industrial settings. Tailored for 3-phase (320-575Vac) or 2-phase (340-575Vac) AC input systems (consult datasheet for derating), this unit is ideal for heavy-duty applications such as large-scale factory automation, grid-tied renewable energy systems, and industrial HVAC controls. Its high power density and efficiency, paired with a fanless, convection-cooled design, ensure reliable operation from -30°C to +70°C, maintaining full power up to +50°C at rated input. Featuring constant current mode with overcurrent protection, the DRF-240W (3-Phase) excels in charging applications, powering battery management systems and capacitive loads in demanding equipment like industrial compressors. Certified to IEC/EN/UL 62368-1 safety standards and RoHS-compliant, it meets rigorous global environmental and regulatory requirements. Compliance with EN 61000-6-4 Class B emission and EN 61000-6-2 immunity standards ensures minimal electromagnetic interference in complex industrial environments. Compact, DIN rail-mountable, and built for rugged durability, this power supply is a premier choice for engineers seeking a high-efficiency, 3-phase-compatible solution for critical industrial applications.

For specific information on the Delta DRF-24V240W3GBA please view the datasheet
