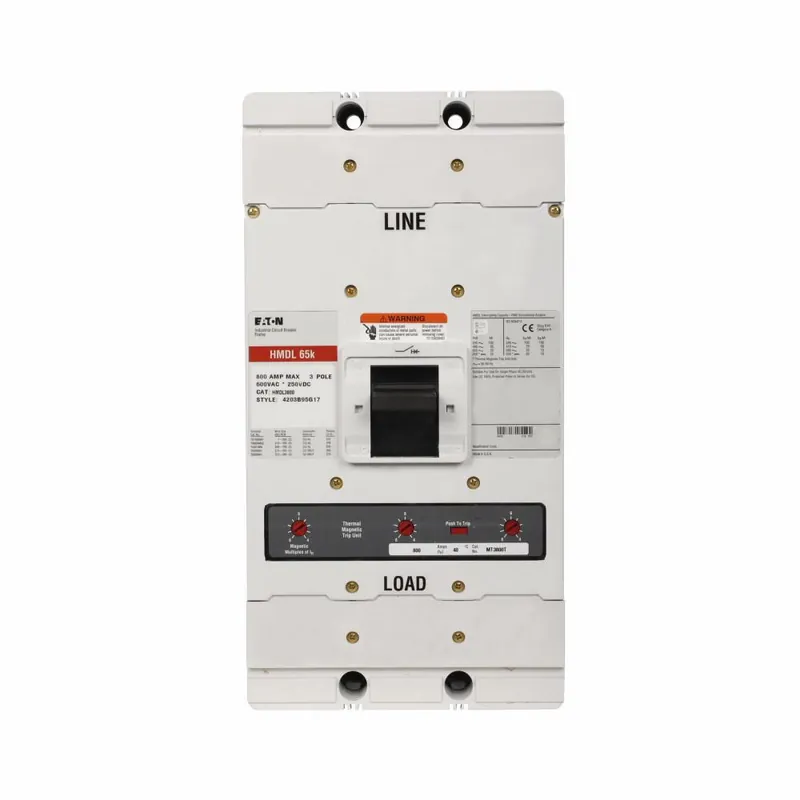

Product Specifications – HMDL3800Y – Eaton Molded Case Circuit Breaker
-
Part Number:
HMDL3800Y -
Manufacturer:
Eaton Cutler-Hammer -
Family:
Series C -
Pole:
3 -
Amp
800 -
Volt:
600 -
Phase:
3
-
Category:
Molded Case / 3-Pole -
Connection:
Feed-Thru -
Type:
HMDL -
Functions:
LI – Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V -
Frame Type:
M Frame
Dimensions
-
Dimensions (HxWxD):
B 8″ x 10.75″ x 18.25″
-
Weight:
30.4 lbs
Standards
Product Description – HMDL3800Y – Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type HMDL, 3P, 3PH, 800A, 600V, 65kA@480V, high interrupting capacity, 40 degree C, feed-thru, complete with interchangeable, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
